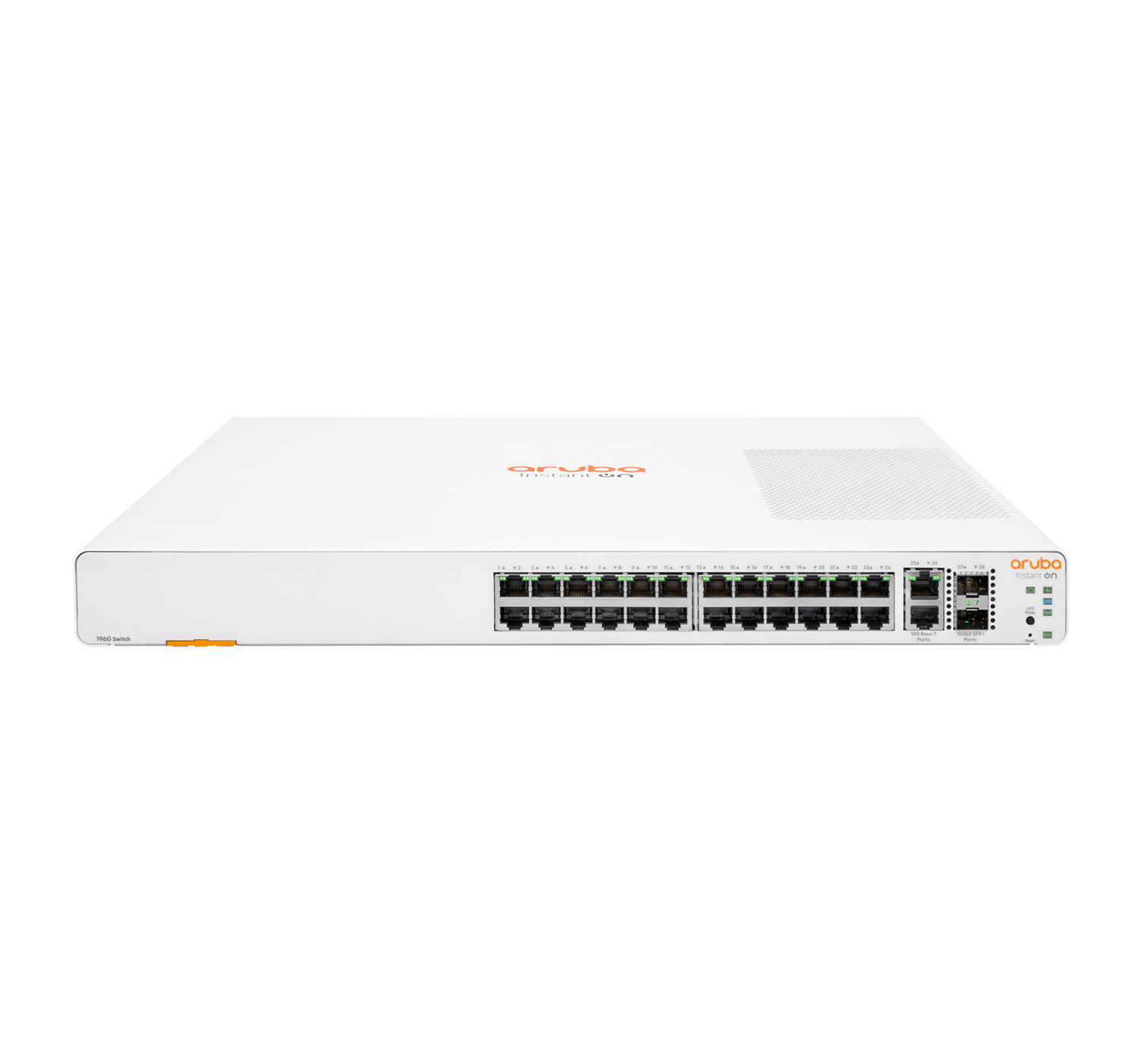

HP Enterprise Aruba Instant On 1960 24G 2XGT 2SFP+ Managed L2+ Gigabit Ethernet (10/100/1000) 1U Wit
Aruba Instant On 1960 24G 2XGT 2SFP+ Managed L2+ Gigabit Ethernet (10/100/1000) 1U Wit 482,-

Aruba Instant On 1960 24G 2XGT 2SFP+ Managed L2+ Gigabit Ethernet (10/100/1000) 1U Wit

€482,- €482,00
Nu 3 artikelen nog op voorraad
EAN: 0190017520315
SKU: JL806A
  • 2 - 3 werkdagen
Informatie
Aruba Instant On 1960 24G 2XGT 2SFP+. Switch type: Managed, Switch-laag: L2+. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 24. Full duplex. MAC-adrestabel: 16000 entries, Switchingcapaciteit: 128 Gbit/s. Netwerkstandaard: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Rack-montage, Vormfactor: 1U

Specificaties

Beheerfuncties

Switch type
Managed
Switch-laag
L2+
Quality of Service (QoS)
Web-gebaseerd management
Cloud-beheerd

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten
24
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal 10G Ethernet (koper)poorten
2
Aantal moduleslots SPF+
2

Netwerk

Netwerkstandaard
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
10G support
Port mirroring
Full duplex
Datastroombeheer
Verbindingsaggregatie
Auto MDI/MDI-X
Spanning tree protocol
Auto-sensing
VLAN=ondersteuning

Data-uitwisseling

Switchingcapaciteit
128 Gbit/s
Throughput
95 Mpps
MAC-adrestabel
16000 entries
Latentie (10-100 Mbps)
4,4 µs
Latentie (1 Gbps)
2,2 µs
Latentie (10 Gbps)
1,1 µs
Jumbo Frames ondersteuning

Beveiliging

DHCP-functies
DHCP snooping
Access Control List (ACL)
IGMP snooping
Authenticatie
Poortgebaseerde authenticatie
Authenticatie type
RADIUS

Multicast-functies

Multicast-ondersteuning

Protocollen

IPv4- & IPv6-functies
IPv4/IPv6 access-control list (ACL)
IPv4-FIB-vermeldingen
32
IPv6-FIB-vermeldingen
32

Design

Rack-montage
Stapelbaar
Vormfactor
1U
Kleur van het product
Wit

Prestatie

Physical stacking (units)
4
Type processor
Processormodel
ARM Cortex-A9
Frequentie van processor
800 MHz

Energie

Vermogenstoevoer inclusief
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 90 procent

Gewicht en omvang

Breedte
442,5 mm
Diepte
350,5 mm
Hoogte
44 mm
Gewicht
3,9 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
